RIEGL VZ-400i

The RIEGL VZ-400i is a state-of-the-art laser scanning system that combines a new, innovative, future-oriented processing architecture and internet connectivity with RIEGL's latest LiDAR waveform processing technology.
This real-time data stream is enabled through dual processing platforms: a dedicated processing system for simultaneous acquisition of scanning data and images, waveform processing and system operations, and a second processing platform that allows automatic recording to board, geo-referencing and analysis must be performed in parallel. The VZ-400i offers an integrated 3G / 4G LTE modem, Wi-Fi and Ethernet communications hardware.
With its integrated orientation sensor (MEMS IMU, compass and barometer), the pulse repetition rate of up to 1200 kHz of the VZ-400i can be fully utilized in many environments and orientations. The system offers a wide range of flexibility, supporting numerous peripherals and external accessories through its integrated USB ports and stable mounting points.

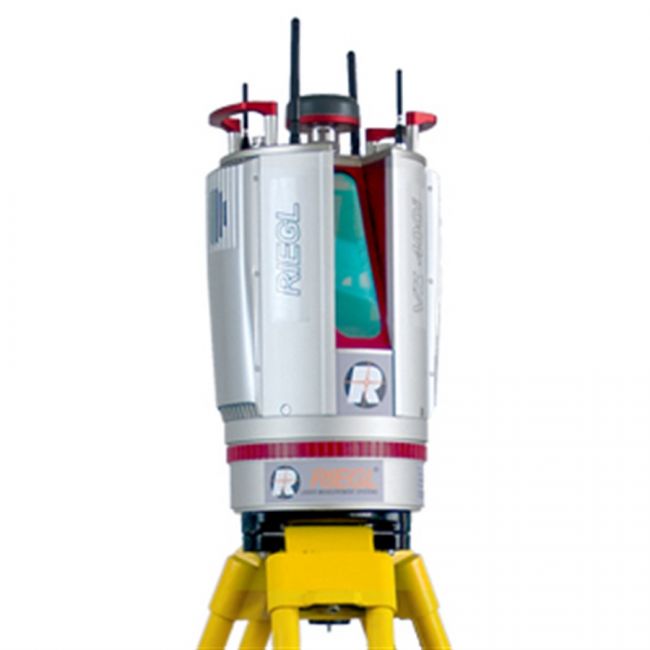

RIEGL VZ-400i 3D laser scanner
It includes:
- laser transmitter and front receiver
- motorized mirror scanning mechanism
- signal processing electronics with echo digitization and on-line analysis of waveforms
- 5 ”high resolution color display (800x480px) with touch screen
- 1 TByte SSD for data storage, internal - GPS receiver (L1), integrated (with antenna)
- MEMS IMU, integrated (3-axis accelerometer / gyroscope / magnetometer (compass) and barometer)
- laser lead, integrated - internal power supply electronics, input voltage 11
- 34 V DC Detailed specifications and laser classification according to the latest RIEGL VZ-400i data sheet.
Electrical interfaces, integrated
- 10/100/1000 MBit / s LAN interface in base - integrated WLAN interface with two high gain MIMO antennas
- USB 3.0 for external storage devices (USB flash drives, external HDD)
- SDXC card slot for storage media up to 512 GBytes
- GigE and USB 3.0 interface for optional external camera
- a connector for GPS antenna L1
- two connectors for external power supply
- connector for serial interface and external GPS synchronization pulse (1PPS)
- interface and connector for external GNSS receiver
- Integrated multi-mode cellular module with two MIMO LTE 4G / 3G antennas and support for Nano SIM card
Mechanical, integrated interfaces
- W5 / 8 "standard tripod mounting thread
- high precision mounting pads for mounting the camera on top
- 3x M6 mounting threads, 8 mm deep at the bottom
Cable
- TCP / IP cable M12-M12, 3 m
(Part No. HW-GP-03-000-00)
- TCP / IP cable M12-RJ45, 0.3 m
(Part No. HW-GP-03-002-00)
- Power cable, 7 poles to 2 poles for V-Line, 2m
(Part No. HW-VXX-03-011-01)
- USB debugging cable for VUX and VZ-i series, 1.5 m
(Part No. HW-VUX-03-000-00)

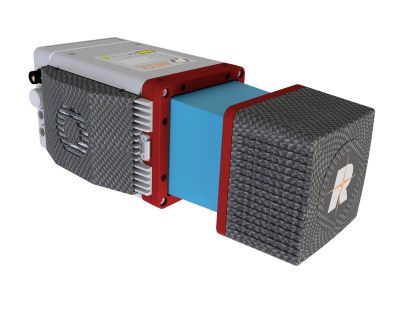

Protective cover set for VZ-400i instruments
(Article code HW-VZXX-06-065-00)
Retrore fl ectors
- 100 pcs. of circular retrore, white, diameter 50 mm
(Part No. HW-GP-06-002-00)
RiSCAN PRO visualization, acquisition and processing program
(Code no. SW-GP-07-000-00)
For a detailed description of the main functions, see the RiSCAN PRO data sheet.
- The software package that accompanies the RIEGL series of terrestrial laser scanners
- Using a well-documented tree structure for comfortable access and clarity
- Project oriented, XML file format
- For WINDOWS WINDOWS 7, WINDOWS 8, WINDOWS 10 or above operating systems include:
- RiSCAN PRO Viewer license for viewing already purchased RiSCAN PRO projects and simple data evaluation
- RiSCAN PRO acquisition license for RIEGL scanner configuration and data acquisition, global scanning data recording, viewing and exporting combined and filtered point clouds
- Single user license for RiSCAN PRO processing (Dongle) for advanced data processing and evaluation of already purchased RiSCAN PRO projects
- RiMTA (multiple-time-around) incorporated maintenance of standard RiSCAN PRO software for 12 months
(Part No. ST-GP-06-000-00)
- Free software updates
- Email and telephone support
VZ-xx Standalone - Reflector search and fine scan
Applicable for independent operation with the RIEGL VZ-xx scanner, without the need for a computer running RiSCAN PRO, via the human scanner's integrated machine interface.
Identifies all available spotlight targets and ignores incorrect ones due to user-defined rules and intelligent processing. Automatic scan of each valid reflector to obtain an exact position of the reflector as a basis for the overall recording.
Automatic on-board registration Allows you to drag and drop the scan project into the RIEGL post-processing software. Automatic registration uses:
- point cloud information
- Internal Measurement Unit (IMU) information
- compass information
- GNSS measurements
Essential on-board settings:
- Automatic selection
- Urban outdoors
- Outdoor non-urban
- Large interior
- User manual for small interior (in English) "Technical documentation and operating instructions", including, inter alia, instructions for: Safety, installation, operation, etc.

Main Features	Main Applications
High laser pulse repetition rate of up to 1.2 MHz	As-Built Surveying
High speed data acquisition up to 500,000 measurements/sec	Architecture & Facade Measurements
Eye safe operation at Laser Class 1	Archaeology & Cultural Heritage
Wide field of view, 100°x360°	Building Infrastructure Management (BIM)
Range up to 800 m, accuracy 5 mm	Forensics & Crash Scene Investigation
High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing	City Modeling
Innovative processing architecture for data acquisition and simultaneous geo-referencing in real-time	Tunnel Surveying
Simultaneous image and scan data aquisition	Civil Engineering
Cloud connectivity via Wi-Fi and 3G/4G LTE	Forestry
Orientation sensor for pose estimation	Research
Integrated GNSS receiver	Monitoring
