RIEGL VMY-2

Product code: VMY-2_EN

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Ask for offer

Transport Gratuit

Comenzile peste 500 de lei beneficiază de transport gratuit. Taxa standard de livrare este 20 de lei, iar pentru zonele care nu se află în raza de acoperire a curierului costul poate fi mai mare

Retur - 14 zile

Orice produs achiziționat online poate fi returnat, legal, în termen de 14 zile, cu mențiunea că plata transportului la returnare îi revine clientului. Produsul nu trebuie să prezinte urme de uzură.

Ai nevoie de ajutor?

Pentru orice nelămurire legată de o comandă sau doriți să verificați disponibilatea unui produs, vă stăm la dispoziție prin email office@blacklight.ro sau telefonic la unul din numerele 0356 808 870 / 0264 484 982 / 0745 252 583

Description Product specifications Reviews

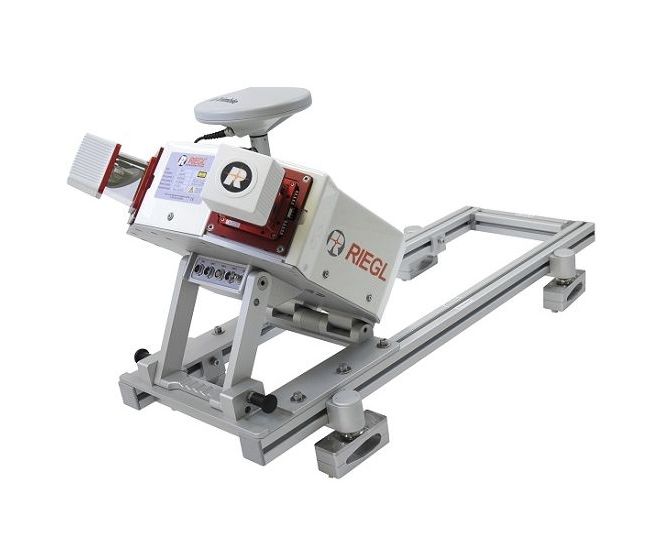

RIEGL VMY-2 is a compact mapping system with a compact, affordable scanner that is suitable for a variety of mobile mapping applications.
The measuring head is equipped with two LiDAR sensors from the RIEGL miniVUX series and is mounted in a well-proven inclined orientation, as is known from RIEGL VMX mobile mapping systems. The system allows data acquisition with up to 200 scan lines / second and up to 400 kHz Pulse repeat rate.
To further enhance the efficiency of the mobile mapping system, the optional integration of up to four cameras allows the simultaneous acquisition of images to complete the captured LiDAR data.

Main Features	Main Applications
High laser pulse repetition rate of up to 400 kHz	GIS Mapping and Asset Management
200 scan lines per second	Transportation Infrastructure Mapping
Range 280 m	HD Mapping for Autonomous Vehicles
Accuracy 15 mm / Precision 10 mm	City Modeling
Câmp vizual de până la 360 °	Rapid Capture of Construction Sites and Bulk Material
Eye safe operation at Laser Class 1	Surveying in Open-Pit Mining
Field of view 360°	As-Built Surveying
Multiple target capability
INS/GNSS system fully integrated
Optional integration of up to 4 cameras

The configuration includes:
- High precision 3D laser scanner RIEGL VMY-2;
- Software licenses for raw data acquisition and processing;
- Applanix AP60 inertial navigation unit with integrated IMU / GNSS and related software;
- 12 MPx cameras;
- 360 ° camera and mounting kit;
- Control unit;
- Cables and accessories;
- 3D scanning and mapping system platform for vehicle mounting;
- Transport box.

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Category: Mobile 3D laser scanners
