RIEGL VMX-2HA

Product code: VMX-2HA_EN

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Ask for offer

Transport Gratuit

Comenzile peste 500 de lei beneficiază de transport gratuit. Taxa standard de livrare este 20 de lei, iar pentru zonele care nu se află în raza de acoperire a curierului costul poate fi mai mare

Retur - 14 zile

Orice produs achiziționat online poate fi returnat, legal, în termen de 14 zile, cu mențiunea că plata transportului la returnare îi revine clientului. Produsul nu trebuie să prezinte urme de uzură.

Ai nevoie de ajutor?

Pentru orice nelămurire legată de o comandă sau doriți să verificați disponibilatea unui produs, vă stăm la dispoziție prin email office@blacklight.ro sau telefonic la unul din numerele 0356 808 870 / 0264 484 982 / 0745 252 583

Description Product specifications Reviews

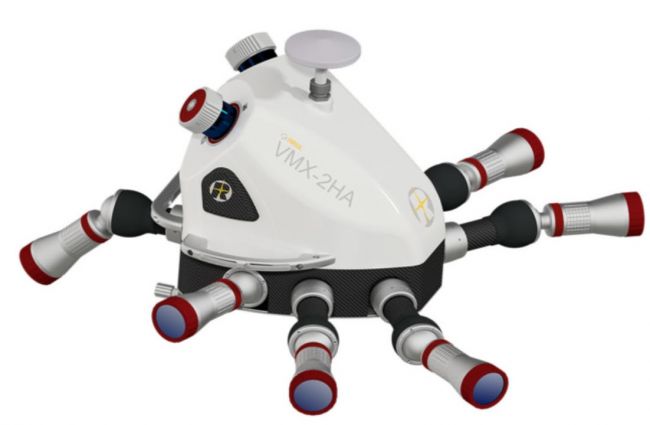

RIEGL VMX-2HA is a high-performance, high-speed 3D scanning and mobile mapping system with two high-performance 3D laser scanners that provide dense, accurate and feature-rich data at highway speeds. With 2 million measurements and 500 scan lines per second, this turnkey solution is suitable for mobile mapping applications with a high level of geodetic accuracy.

Technical specifications:

- effective measurement rate: 600 kHZ, 1 MHz, 1.5 MHz, 2 Mhz;

- minimum range: 1.2 m;

- maximum range: 420 m;

- maximum number of targets per impulse: unlimited;

- accuracy: 5 mm;

- accuracy: 3 mm;

- field of view: 360 ° "full circle";

- scan speed (selectable): up to 500 scan lines / second;

- travel speed: 50/80/120 km / h;

The configuration includes:

- two high precision 3D laser scanners RIEGL VUX-1HA;

- software licenses for raw data acquisition and processing;

- Applanix AP60 inertial navigation unit with integrated IMU / GNSS and related software;

- 12 MPx cameras;

- 360 ° camera and mounting kit;

- control unit;

- cables and accessories;

- 3D scanning and mapping system platform for vehicle mounting;

- transport box.

Main Features	Main Applications
High laser pulse repetition rate of up to 2 MHz	Transportation Infrastructure Mapping
500 scan lines per second	Road Surface Measurements
Range 420 m	City Modeling
Field of view 360°	Rapid Capture of Construction Sites and Bulk Material
Multiple target capability	Surveying in Open-Pit Mining
Aerodynamically-shaped protective cover	GIS Mapping and Asset Management
Camera interface for up to 9 optional cameras	As-Built Surveying
High-Speed 10GigE Link
RIEGL VMX-2HA BC "Basic Configuration": version reduced in weight and size
Applanix AP60 inertial navigation unit with integrated IMU / GNSS

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Category: Mobile 3D laser scanners
