RIEGL VZ-2000i | | 3D Laser Scanners

Description Product specifications Reviews

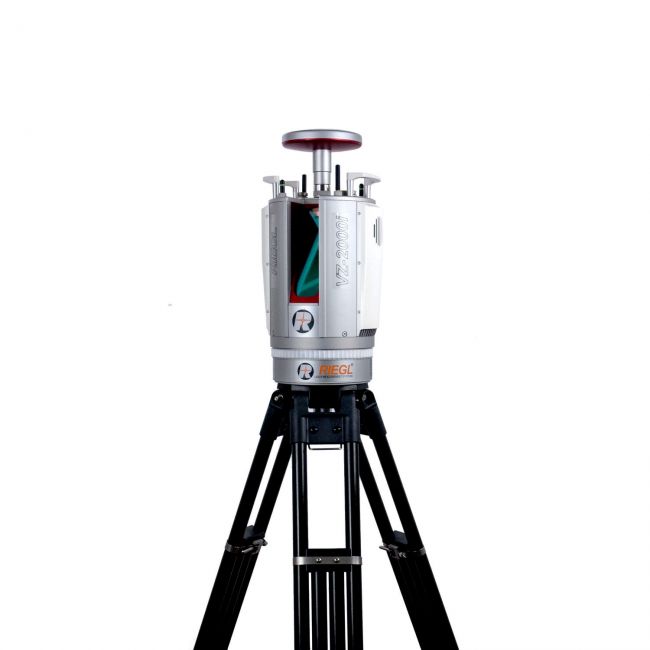

Based on a future-oriented, innovative new processing architecture, internet connectivity, and RIEGL's latest waveform processing LiDAR technology, the RIEGL VZ-2000i Long Range 3D Laser Scanning System combines proven user friendliness in the field with fast and highly accurate data acquisition.
Its new processing architecture enables execution of different background tasks (such as point cloud registration, geo- referencing, orientation via integrated Inertial Measurement Unit, etc.) on-board in parallel to the simultaneous acquisition of scan data and image data. A full documentation of the scanner‘s software components – directly accessible on the RIEGL VZ-2000i – provides a sound basis for creation of your own python apps to enhance the scanner functionality. The system provides highest flexibility by supporting numerous peripherals and accessories such as the integrated GNSS unit for high accurate RTK solution, a SIM Card slot for 3G/4G LTE, WLAN, LAN, USB, and different other ports of external units.
RIEGL's unique Waveform-LiDAR technology is the key to enabling such high speed, long range, high accuracy measure-ments even in poor visibitlity and demanding multi-target situations caused by dust, haze, rain, vegeta-tion, etc.

Main Features	Main Applications
High laser pulse repetition rate of up to 1.2 MHz	Topography & Mining
High speed data acquisition up to 500,000 measurements/sec	Surveying in Open-Pit Mining
Wide field of view, 100°x360°	Archaeology & Cultural Heritage
Range up to 2500 m, accuracy 5 mm	City Modeling
High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing	Civil Engineering
New, innovative processing architecture for data acquisition and simultaneous geo-referencing in real-time	Monitoring
Simultaneous image and scan data aquisition	Forestry
Cloud connectivity via Wi-Fi and 3G/4G LTE	Research
Integrated GNSS receiver	Stand-alone Static and (within RIEGL VMZ) Mobile Laser Scanning
Fully compatible with the RIEGL VMZ Mobile Laser Mapping System

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Category: Aerial 3D laser scanners
