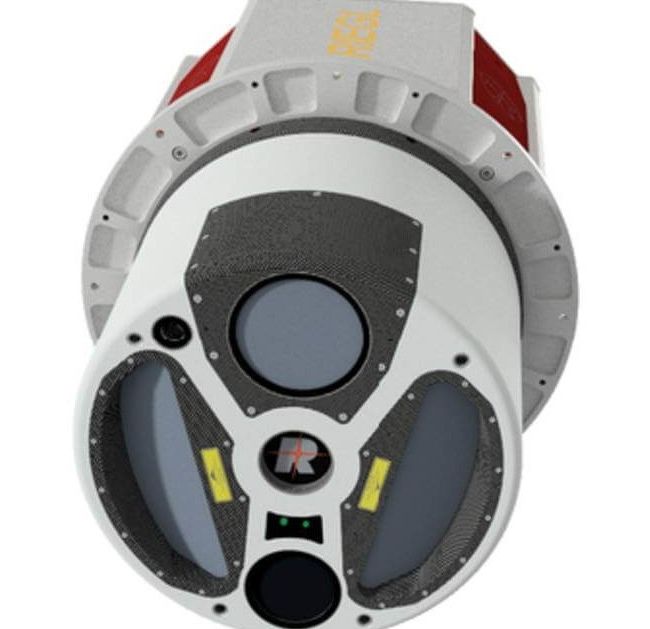

RIEGL VQ-1560 II | | 3D Laser Scanners

Description Product specifications Reviews

The VQ-1560 II LiDAR waveform processing system offers increased performance and high productivity, based on a laser pulse repetition rate of up to 4 MHz, resulting in over 2.66 million measurements per second on the ground .

Typical operating flight altitudes range from less than 1,500 ft to 12,100 ft (@ target reflectance of> 20%). The repetition rate of the laser pulses can be adjusted in steps lower than 12 kHz.
In combination with different laser power modes, it is possible to subtly optimize the acquisition parameters to meet the specific requirements of the project.

These features make the tool the most flexible choice for purchasing scanning data with an exceptionally wide range of achievable point densities and maximum data collection efficiency at the same time. The VQ-1560 II's unique forward / backward scan angle with its 58-degree wide field of view allows data to be captured from multiple angles more efficiently and accurately at high densities.

The system is equipped with a perfectly integrated high performance IMU / GNSS unit and e.g. an optional 150-megapixel RGB camera built into the main compartment of the camera.
Optionally, a second room, e.g. a thermal camera or an infrared camera of almost 150 megapixels can be integrated on request. The compact housing design features a mounting flange for interfacing with typical hatches or gyroscope-stabilized leveling brackets.

Main Features	Main Applications
High laser pulse repetition rate up to 4 MHz	Ultra Wide Area / High Altitude Mapping
Up to 2.66 million measurements per second on the ground	Ultra-High Point Density Mapping
Offers highly efficient data acquisition at a wide range of point densities	Mapping of Complex Urban Environments
Two waveform processing LiDAR channels offering excellent multiple target detection capability	Glacier & Snowfield Mapping
Enables Multiple-Time-Around (MTA) processing of up to 35 pulses simultaneously in the air	Mapping of Lakesides & River Banks
Excellent suppression of atmospheric clutter	Agriculture & Forestry
Offers online waveform processing as well as smart and full waveform recording	Corridor Mapping
Integrated, easily accessible medium format camer
Prepared for integration of a secondary camera
High-speed fiber data interface to RIEGL data recorder

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Category: Aerial 3D laser scanners
